# Open Source OS Development in Rust

.grey[Philipp Oppermann] .grey[May 22, 2017]

---

# About Me

- CS student at KIT in Karlsruhe
- Specializing in Operating Systems
- Learned Rust in mid 2014…

???

- 1.0 came out in May 2015
- started without libstd

--
  - …to write a toy OS in it

```rust
#[no_mangle]
pub fn main(info: *const multiboot::Information) {
    let info: &multiboot::Information = unsafe { &(*info) };
    memory::init(info);
    interrupts::init();
    spawn(task);
    loop {}
}
fn spawn(f: proc():Send) {…}
fn task() {…}
```

???
- `proc()` is a `move` closure today
- closures were boxed
- apart from that, relatively few changes

---
count: false

# About Me

- CS student at KIT in Karlsruhe
- Specializing in Operating Systems
- Learned Rust in mid 2014…
  - …to write a toy OS in it

- Since summer 2015: **Writing an OS in Rust**
--

- Since Oct 2015: student research assistant
 - **Embedded Rust development**
 - First job listed on _This Week in Rust_:
 <div style="border: 1px solid grey; padding: 3px;">
 <img src="twir-job.png">
 </div>

---

# Outline

- About _Writing an OS in Rust_

- Open Source Development on GitHub
  - Example: Adding support for the `x86-interrupt` ABI

- Multitasking
  - Principles

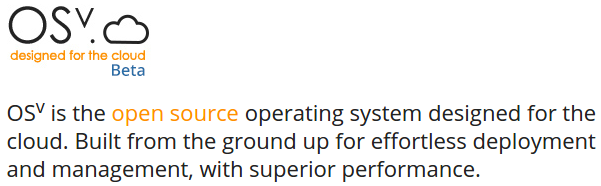

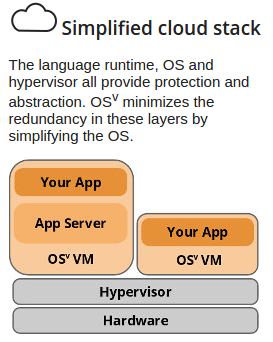

  - Case Study: OSv scheduler
  - Case Study: _Real Time For The Masses_

.grey[Slides: https://os.phil-opp.com/talks]

---
class: center, middle

# About _Writing an OS in Rust_
---
# Writing an OS in Rust: Motivation

- Information scattered across the internet
  - OSDev wiki, x86 manuals, multiboot specification, Rust docs
- Some things not documented at all .grey[(or hard to find)]
  - Rust lang items, target specifications, multiboot 2 with ELF64, correct linker flags, ELF section alignment, etc.
- Most tutorials used old technology
  - Only 32-bit, multiboot 1, no page tables

--
## Goals

- Step-by-step guide
- Provide detailed explanations

---
# Writing an OS in Rust: The Beginnings

- Published in Oct 2015
  - Four posts: A minimal Kernel, Entering Long Mode, Set Up Rust, and Printing to Screen

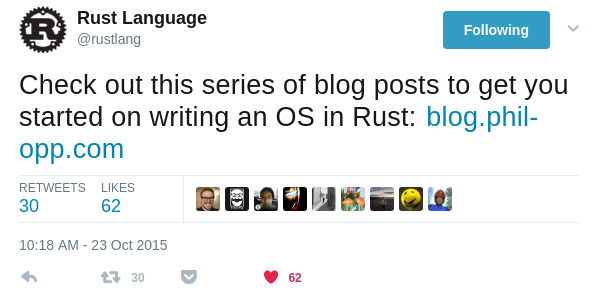

.center[![rustlang tweet](rustlang-tweet.png)]

---
# Writing an OS in Rust: The Beginnings

Received very positive feedback on [/r/rust](https://www.reddit.com/r/rust/comments/3q5a7l/get_started_on_writing_an_os_in_rust/):

- “This is a **pretty great introduction** to OS dev! It's a **lot more readable** than many other tutorials I've read.”
- “Thanks so much for your post. When I was toying with my own kernel a while ago, I would get stuck on things like `--gc-sections` for days. I'm really glad to see there's now **a resource on all the hoops you have to go through to boot to Rust**.“

---
# Writing an OS in Rust: The Beginnings

Then some people shared it on [/r/programming](https://www.reddit.com/r/programming/comments/3q6y2l/writing_an_os_in_rust/) and [hacker news](https://news.ycombinator.com/item?id=10448136):

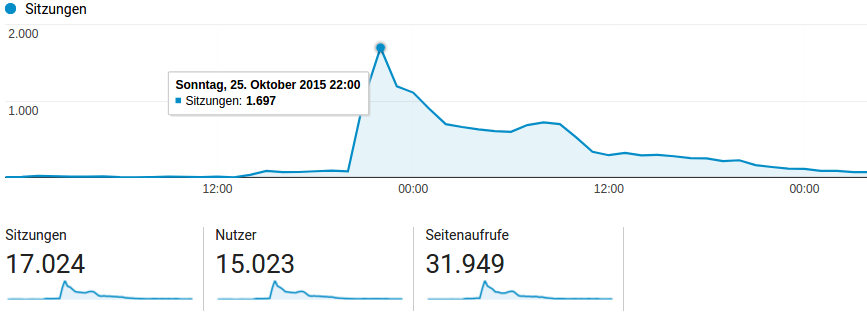

![visitors](visitors.png)

- Suddenly my blog had over 15,000 visitors
  - I was completely blown away :)

---
# Writing an OS in Rust: Today

- 792 stars on GitHub
- Over 1000 commits .grey[(873 without merges/bots)]
- Over 280 comments on the blog
  - and many more on reddit/hacker news
- Lots of issues and pull requests

- Even used in lectures :)
  - HTWG Konstanz
  - KTH Stockholm

- Influenced other Rust OS projects
  - IntermezzOS
  - Redox OS .grey[(a small bit)]

---
class: middle, center

![rhizome](rhizome.jpg)
# .title[intermezz]OS
## .grey[a teaching operating system]

---
# IntermezzOS

- Teaching OS by Steve Klabnik
  - .grey[Member of the Rust core team]
- Inspired by _Writing an OS in Rust_

- Goal: make OS development easy for newcomers
- Talk by Ashley Williams at [Rust Fest](https://www.youtube.com/watch?v=WxbrhruIAa8) & [Rust Belt Rust](https://www.youtube.com/watch?v=s3B-0ndna5c&list=PLgC1L0fKd7UmdG82JOEE0uzXci1XY61xU&index=12)
  - “I can operating system and so can you”

---
class: middle, center
![redox-logo](redox-logo.png)
---
# Redox

- By Jeremy Soller (@jackpot51)
  - [Interview about Redox](https://www.youtube.com/watch?v=eH5JgMlNE8o)
- Microkernel design
  - Drivers run in userspace
  - Kernel is only ~8500 LoC .grey[(+ dependencies)]
- Full-featured Operating System
  - GUI
  - file system
  - rudimentary webbrowser
- Page table handling inspired by _Writing an OS in Rust_

---

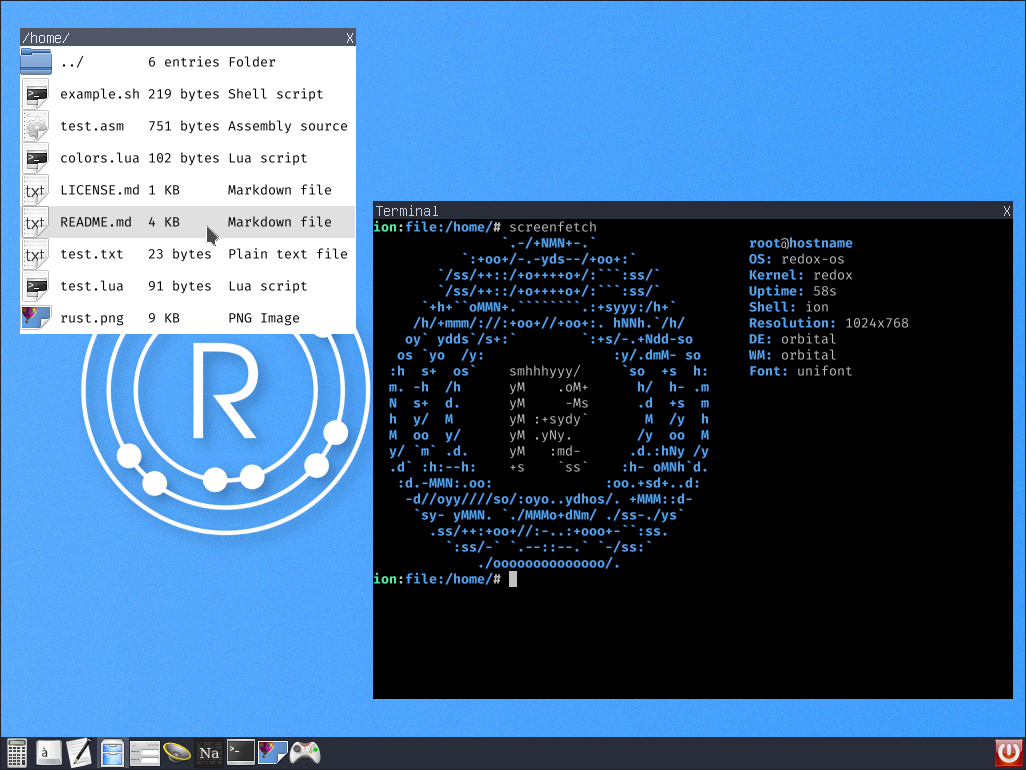

# Redox

.center[![redox screenshot](redox-screenshot.png)]

---
# Writing an OS in Rust: Future Plans

- Move more code into the `x86_64` crate
  - e.g. GDT or page table types
- Write post about hardware interrupts
  - PIC/APIC interrupt controllers
  - timer interrupts
- Reorder posts: Exceptions before Paging
  - `x86-interrupt` ABI made exception handling easier
- Multitasking
- Improve tooling
  - own boot loader?
  - own ISO creation tool?

---
# Writing an OS in Rust: Bottom Line

- Surprisingly large interest in the topic
- Lots of positive feedback from the beginning on
- I learned a lot about
  - operating systems, x86, Rust, assembly, …
  - writing in English
  - maintaining open source projects

⇒ After almost 2 years still an exciting project for me

---
class: middle
# You can do it too!

If you have a cool idea for a project: **Write about it**!

- It interests more people than you think
- It doesn't need to be perfect

---
class: center, middle

# Open Source Development on GitHub
.grey[Adding support for the `x86-interrupt` ABI]

---
# Open Source Development on GitHub

- Everything is public
  - issues, discussions, work-in-progress features, …
- Everybody can propose changes
  - _Fork_ the repository .grey[(i.e. copy it to your own account)]
  - Perform the changes in your repo .grey[(in a separate branch)]
  - Send a _pull request_ .grey[(PR)]

- Larger changes often require prior discussion
  - Rust requires RFCs .grey[(request for comments)]

---
class: small-slide

# RFC Example: Support for 128bit Integers

- Feature Name: int128
- Start Date: 21-02-2016
- RFC PR: https://github.com/rust-lang/rfcs/pull/1504
- Rust Issue: https://github.com/rust-lang/rust/issues/35118

**Summary**

This RFC adds the `i128` and `u128` primitive types to Rust.

**Motivation**

Some algorithms need to work with very large numbers that don't fit in 64 bits, such as certain cryptographic algorithms. One possibility would be to use a BigNum library, but these use heap allocation and tend to have high overhead. LLVM has support for very efficient 128-bit integers, which are exposed by Clang in C as the `__int128` type.

**Detailed design** […]

---
# Example Contribution: x86-interrupt ABI
The Problem:

```nasm
#[naked]
unsafe extern fn exception_handler_wrapper() {
    asm!("push rax
          […] // push other registers
          push r11
          sub rsp, 8 // align the stack pointer
          call exception_handler
          add rsp, 8 // undo stack pointer alignment
          pop r11
          […] // pop other registers
          pop rax
          iretq
          " :::: "volatile", "intel");
    intrinsics::unreachable();
}
```

---
# Example Contribution: x86-interrupt ABI

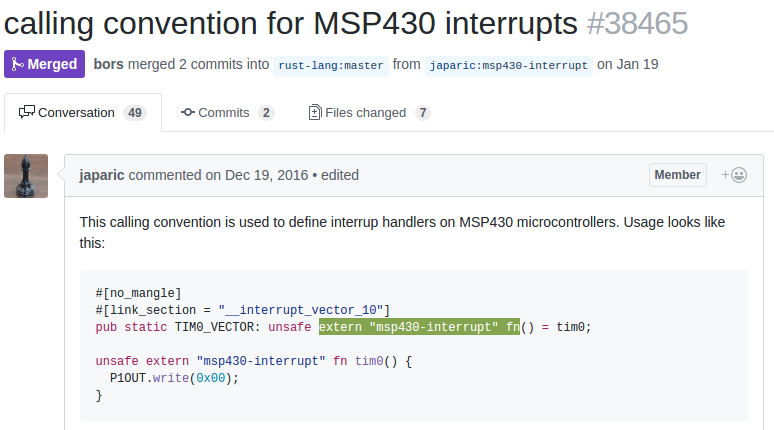

Then I saw this PR:

![msp430 interrupts](msp430-interrupts.png)

---
# Example Contribution: x86-interrupt ABI

- Diff very small .grey[(+38 -1)] since LLVM already supports a `msp430-interrupt` ABI

- LLVM also supports a `x86-interrupt` ABI!
  - Let's try to add it!

---
# x86-interrupt ABI: Forking

- Fork the Rust repository
  ![fork](fork.png)

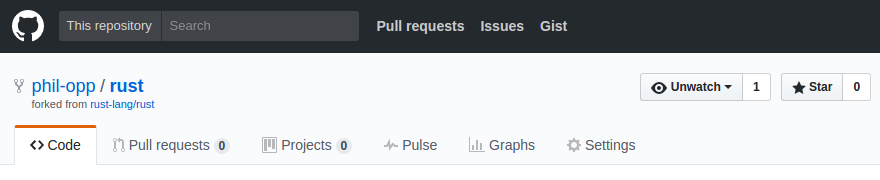

- Then you have your own copy:
  ![forked](forked.png)
---
# x86-interrupt ABI: Implementation

- Implement support for the `x86-interrupt` ABI
  - mostly copy&paste of the msp430 PR

```rust
 /// LLVM CallingConv::ID. Should we wrap this?
 #[derive(Copy, Clone, PartialEq, Debug)]
 #[repr(C)]
 pub enum CallConv {
     CCallConv = 0,
     FastCallConv = 8,
     […]
     Msp430Intr = 69,
     `X86_Intr = 83`,
  }
```
---
# x86-interrupt ABI: Feature Gate

- Add a feature gate

```rust
impl<'a> PostExpansionVisitor<'a> {
 fn check_abi(&self, abi: Abi, span: Span) {
 match abi {
 […],
 `Abi::X86Interrupt => {`
 `gate_feature_post!(&self, abi_x86_interrupt, span,`
 `"x86-interrupt ABI is experimental and subject to change");`
 `},`
 // Stable
 Abi::Cdecl | Abi::Stdcall | Abi::Fastcall | Abi::Aapcs | Abi::Win64 |
 Abi::Rust | Abi::C | Abi::System => {}
 }
 }
}
```
---
# x86-interrupt ABI: Testing

- Build Rust
  - `python x.py build`
  - Wait a few hours .grey[(on the initial build)]
- Run the test suite
  - `python x.py test`
- Try the new compiler
  - There is a new `rustc` in the build dir
  - Tell `cargo` to use it through the `RUSTC` environment variable
      - e.g. `RUSTC="/home/…/rust/…/rustc" cargo build`

---

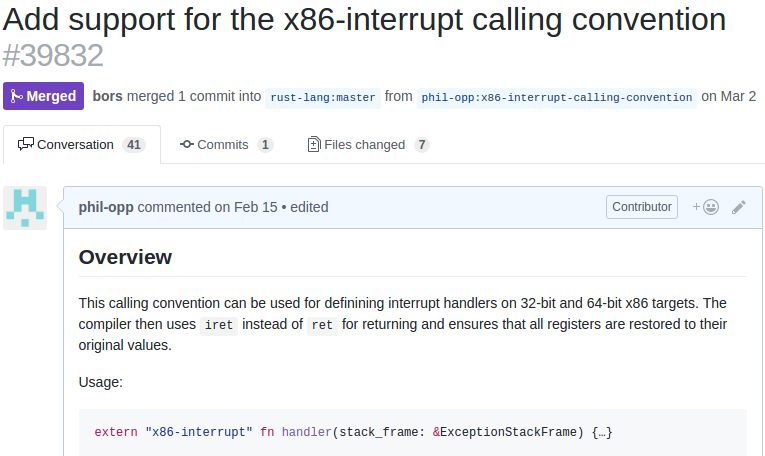

# x86-interrupt ABI: Pull Request

- Send a pull request to Rust's master branch

![x86-interrupt ABI PR](x86-interrupt-pr.png)

---
# x86-interrupt ABI: Continuous Integration

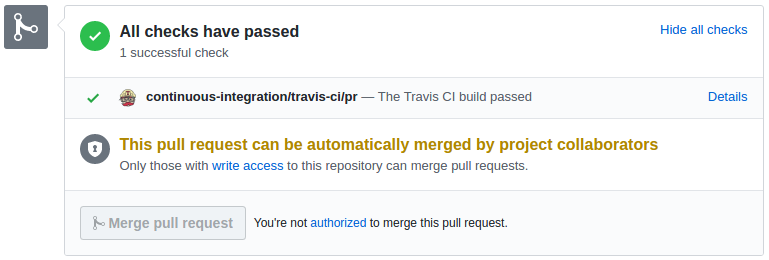

- Each pull request is automatically tested on _Travis CI_
  ![github ci](github-ci.png)
    - For several platforms configurations
      - Not all configurations are tested for PRs
    - Don't worry if a test fails
        - Just push a fix to your PR branch

---

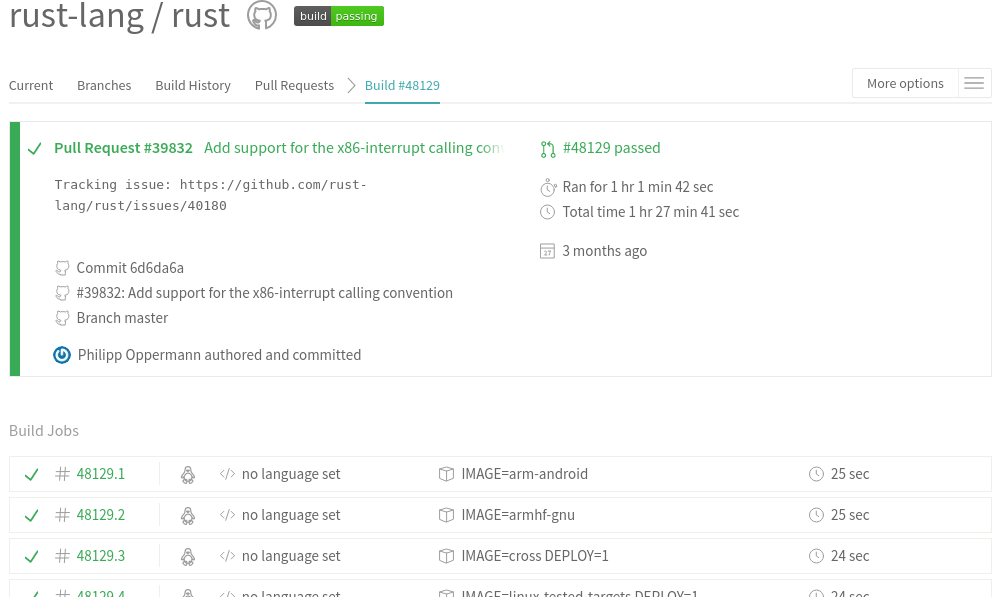

# Travis Builds for Rust (1)

![](travis-1.png)

---

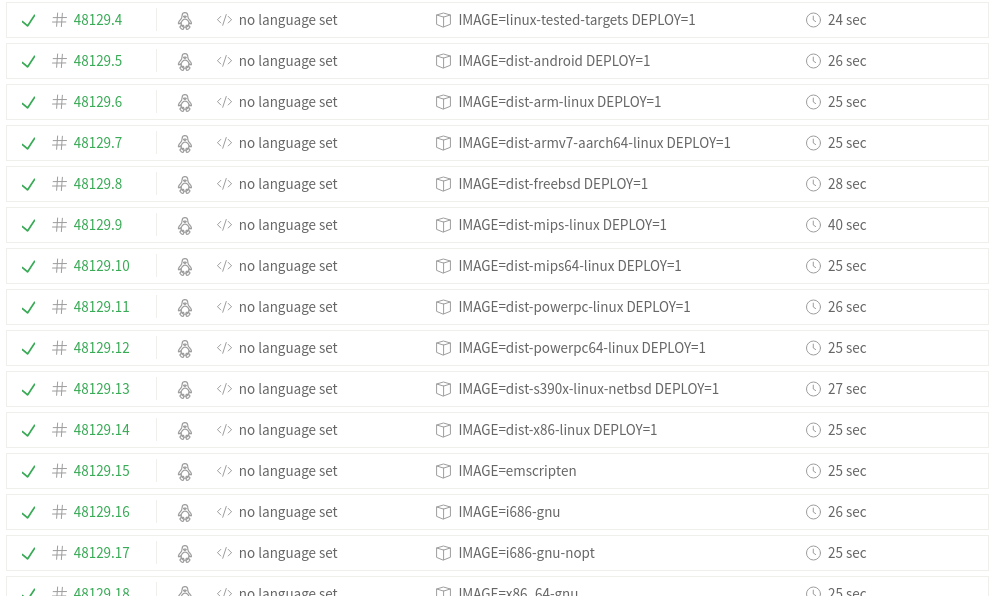

# Travis Builds for Rust (2)
![](travis-2.png)

---

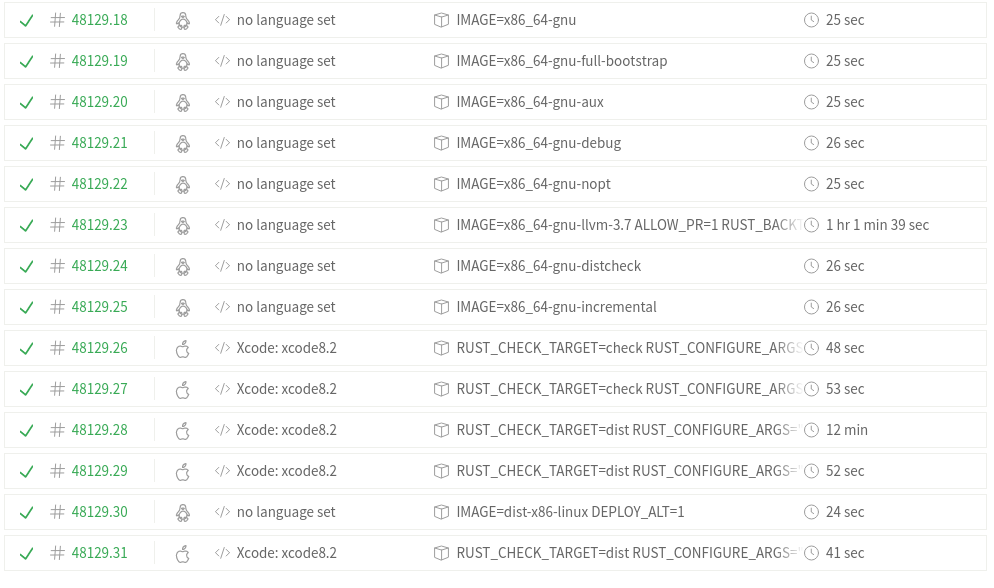

# Travis Builds for Rust (3)
![](travis-3.png)

---
# Travis CI

- Travis is free for open-source projects
  - We also use it for _Writing an OS in Rust_

```yml
# .travis.yml

language: rust
rust:
    - nightly

cache: cargo

addons:
  apt:
    packages:
      - nasm

script:
  - make
```
---

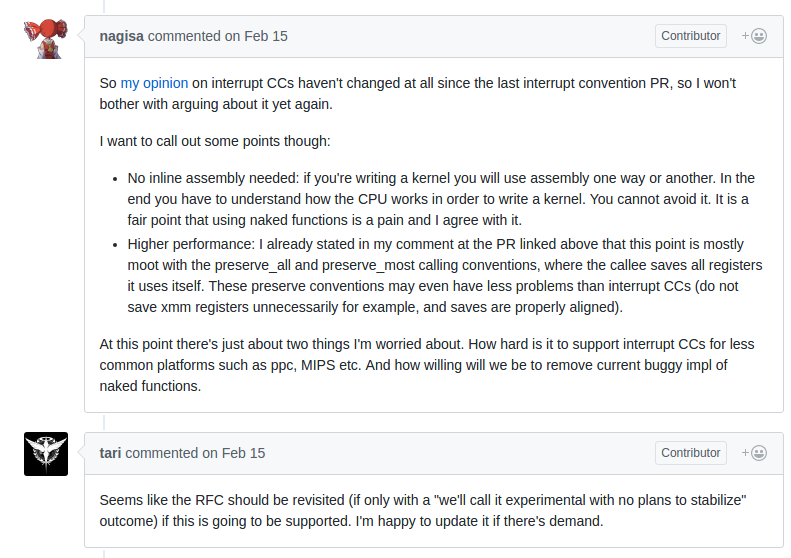

# x86-interrupt ABI: PR Discussion

![](pr-discussion.png)
---

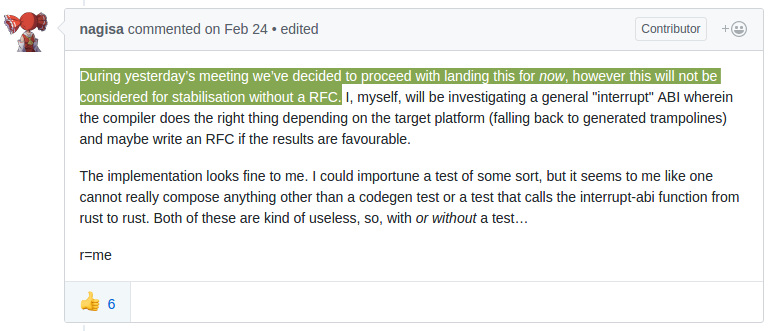

# x86-interrupt ABI: PR Decision

![](pr-decision.png)

---

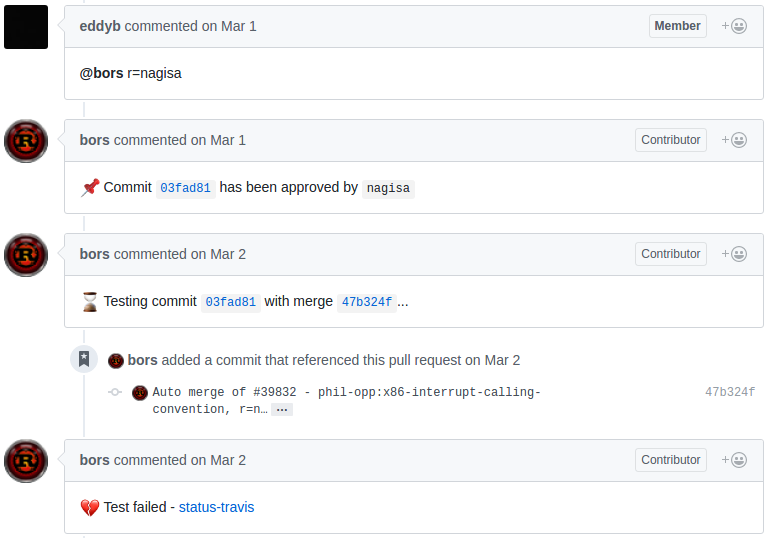

# x86-interrupt ABI: Merging

![](pr-merging.png)

---
# x86-interrupt ABI: Merging

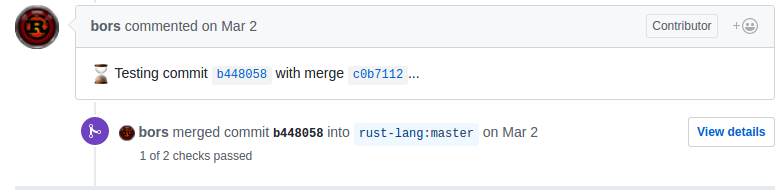

- `bors` bot tests each _merge_
  - Ensures that master always builds
- Runs all tests on Travis
  - Takes several hours
- Performs merge if all tests are green

![](pr-bors-merge.png)

---
# Rust Development on GitHub: Summary

- Scales to large number of contributors
- `bors` ensures that build stays green
- Each change requires a review
  - By a member from the corresponding Rust subteam
- Larger changes require an RFC
- Contributions are welcome from everyone

---
class: center, middle

# Multitasking

---
# Multitasking: Principles

- Multiple threads of execution
  - Each thread requires its own stack
- Switch between threads, so that all make progress
  - A _scheduler_ decides which thread runs next
--

## Preemptive Scheduling

- Set up a hardware timer
  - Sends an _interrupt_ after specific time
- CPU invokes interrupt handler .grey[(defined in the IDT)]
  - Calls _dispatcher_ to perform thread switch
      - Calls scheduler to select next thread

---
# Multitasking: Hardware Interrupts

Two interrupt controllers on x86:

- 8259 Programmable Interrupt Controller (PIC)
  - since 1976.grey[, but still present on modern CPUs]
  - limited number of IRQs
  - no multi-processor support

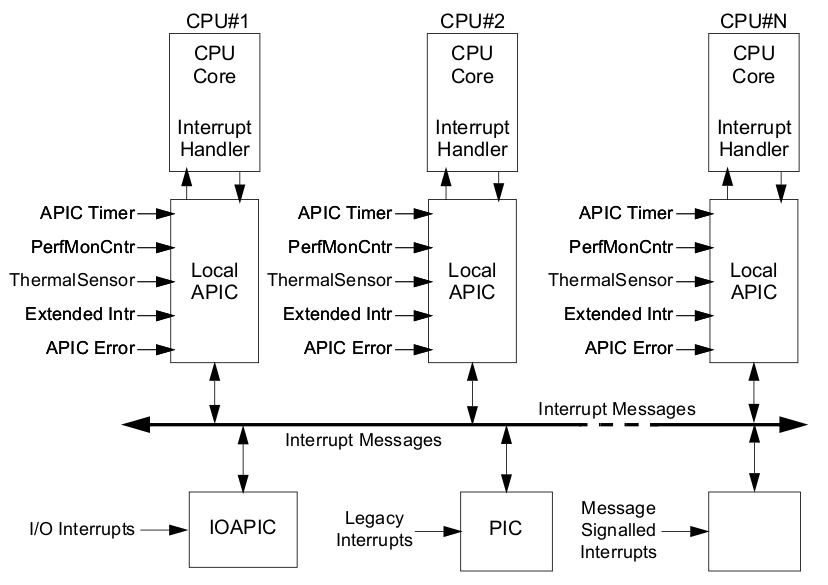

- Advanced Programmable Interrupt Controller (APIC)
  - since ~1990
  - separation: local APIC and I/O APIC
  - supports inter-processor interrupts (IPIs)
  - supports IRQ priorities
  - built-in timer

---
# 8259 Programmable Interrupt Controller (PIC)

Structure:

.center[![](pic-design.svg)]

---
# PIC Initialization

Save and restore interrupt masks:

```nasm
in al, 0x21                 ; save pic1 mask
mov cl, al
in al, 0xA1                 ; save pic2 mask
mov ch, al

[…] ; initialization

mov al, cl
out 0x21, al                  ; restore pic1 mask
mov al, ch
out 0xA1, al                  ; restore pic2 mask
```

---
# PIC Initialization

```nasm
mov al, 0x11
out 0x20, al        ; `send initialize command` to pic1
out 0xA0, al        ; send initialize command to pic2

mov al, 0x20
out 0x21, al        ; `set vector offset` of pic1 to 0x20
mov al, 0x28
out 0xA1, al        ; set vector offset of pic2 to 0x28

mov al, 4
out 0x21, al        ; tell pic1 that there is a slave PIC at IRQ2 (0000 0100)
mov al, 2
out 0xA1, al        ; tell pic2 its cascade identity (0000 0010)

mov al, 0x1
out 0x21, al        ; 8086 mode for pic1
out 0xA1, al        ; 8086 mode for pic2
```

---
# PIC Usage

- Enable interrupts through the `sti` instruction
- Now there should be regular timer interrupts
  - With interrupt vector `0x20` .grey[(pic1 vector offset + 0)]
- Interrupts must be acknowledged
  - By sending an _end of interrupt_ (EOI) signal to master pic
  - If interrupt from slave: Also send EOI to slave pic
  ```nasm
  mov al, 0x20    ; EOI code
  out 0x20, al    ; send EOI to master
  out 0xa0, al    ; send EOI to slave
  ```

---
# PIC: Timer Configuration

To set an interval of 10ms (100Hz):

```nasm
mov rcx, 1193180/100    ; divisor (100 Hz)

mov al, 0x36
out 0x43, al            ; set channel 0 data register + mode bits

mov al, cl
out 0x40, al            ; set low divisor byte

mov al, ch
out 0x40, al            ; set high divisor byte
```

---
# PIC: Summary

- Simple way to get timer interrupts
  - Fixed interval
  - Also: keyboard interrupts
- For more details see [randomhacks.net](http://www.randomhacks.net/2015/11/16/bare-metal-rust-configure-your-pic-interrupts/) and [osdev.org](http://wiki.osdev.org/8259_PIC)
- `pic8259_simple` crate available on crates.io

---
# Advanced Programmable Interrupt Controller

.center[![](apic.png)]

.grey[(from the [.grey[AMD64 manual]](http://developer.amd.com/wordpress/media/2012/10/24593_APM_v21.pdf))]

---
# APIC Configuration

- Memory-mapped configuration registers
- Enable by setting the _spurious interrupt vector register_
- Mask all interrupts in the legacy PIC
- Also remap the PIC IRQs
  - Spurious interrupts are still possible
  - Without remapping, they are interpreted as exceptions

---
# Multitasking: Principles

.grey[- Multiple threads of execution
  - Each thread requires its own stack
- Switch between threads, so that all make progress
  - A _scheduler_ decides which thread runs next]

## Preemptive Scheduling

.grey[- Set up a hardware timer
  - Sends an _interrupt_ after specific time]
- CPU invokes interrupt handler .grey[(defined in the IDT)]
  - Calls _dispatcher_ to perform thread switch
      - Calls scheduler to select next thread

---
# Multitasking: Dispatching

- Save all general purpose registers on the stack
- (Save SSE/floating point state)
- Save stack pointer value in a thread control block
  - Required to continue thread

- Call scheduler to select next thread
- Load stack pointer from next thread's TCB
  - Must be done in assembly

- Restore register state from stack
- For userspace threads: Switch address space
- Continue execution

---
# Dispatching Example: Timer Interrupt Handler

```rust
extern "x86-interrupt" fn timer_handler(f: &ExceptionStackFrame) {
    unsafe {
        asm!("mov rdi, rsp
              call schedule
              mov rsp, rax"
              ::: "rax, rbx, rcx, rdx, rbp, rsi, rdi, r8, …, r15" : "intel");
    }
}

fn schedule(sp: usize) -> usize {
    SCHEDULER.lock().schedule(sp)
}
```

---
# Dispatching Example: Timer Interrupt Handler

```rust
struct Scheduler {
 threads: VecDeque<usize>,
}

impl Scheduler {
    fn schedule(&mut self, sp: usize) -> usize {
        self.threads.push_back(sp);
        self.threads.pop_front().unwrap()
    }

fn create_thread(&mut self, sp: usize, ip: usize) {
        […] // construct interrupt stack frame on stack
        self.threads.push_back(sp_new);
    }
}
```

---
# Multitasking: Scheduler Design

- Cheap to compute
- Ensure fairness .grey[of some kind]
  - e.g. equalize run-time in recent history
- Scalable

- Priorities?
  - Avoid priority inversion!
- Multi-processor support?
- Real-Time guarantees?

---
# Multitasking: Simple Scheduler Designs

- Round-Robin
  - `Vec` of threads
  - Simplest case: `Vec` of stack pointers
- Priority queue using `BinaryHeap`?
- Fixed time-slice lengths
- Pre-allocated memory for real-time guarantees

---
class: center

![](osv.png)
![](osv-design.png)

---
# Case Study: The OSv Scheduler

- Tick-less
  - No periodic timer interrupts
  - Use high resolution clock instead
    - Set a timer for the next thread switch time
- Fairness: exponentially-decaying moving average
- Completely lock-free

.grey[(see [.grey[the paper]](https://www.usenix.org/system/files/conference/atc14/atc14-paper-kivity.pdf) for more details)]
---
# The OSv Scheduler: Lock-Freedom

- No mutexes, no spinlocks
- Separate run-queue per CPU
- Load balancer for migration between CPUs
- `N` lock-free SPSC queues of incoming threads per CPU
  - `N^2` SPSC queues in total
  - Inter-processor interrupt for notification of new content
- Optimization: Bitmap of non-empty queues per CPU

.grey[(`N` = number of CPUs)
(SPSC = “single producer, single consumer”)]

---
# Case Study: Real Time For the Masses

- Idea: Each task belongs to an interrupt
- Scheduling is done by interrupt controller
  - Invokes interrupt handlers highest-priority first
  - Preempts low-priority tasks on higher priority IRQs

- Same-priority tasks can't preempt each other
- Task have _run to completion_ semantics
  - Endless loops cause starvation of lower-priority tasks

More info: http://blog.japaric.io/fearless-concurrency/

---
# RTFM Example

```rust
tasks!(stm32f30x, {
    periodic: Task {
        interrupt: Tim7,
        priority: P1,
        enabled: true,
    },
});

fn periodic(mut task: Tim7, ref priority: P1, ref threshold: T1) {
 // Task local data
 static STATE: Local<bool, Tim7> = Local::new(false);

let state = STATE.borrow_mut(&mut task);
    *state = !*state;
    if *state { LEDS[0].on(); } else { LEDS[0].off(); }
}
```

---
# Multitasking: Summary

- Dispatcher saves/restores thread state .grey[(on stack)]
- Scheduler chooses next thread
 - Tradeoff: good decision <-> fast decision
- Preemption through hardware timer
 - PIC and Programmable Interval Timer (PIT)
 - APIC with integrated timer

Scheduler design ideas:

- OSv: lock-free scheduling
- RTFM: real-time scheduling with priorities
  - Interrupt controller is scheduler
